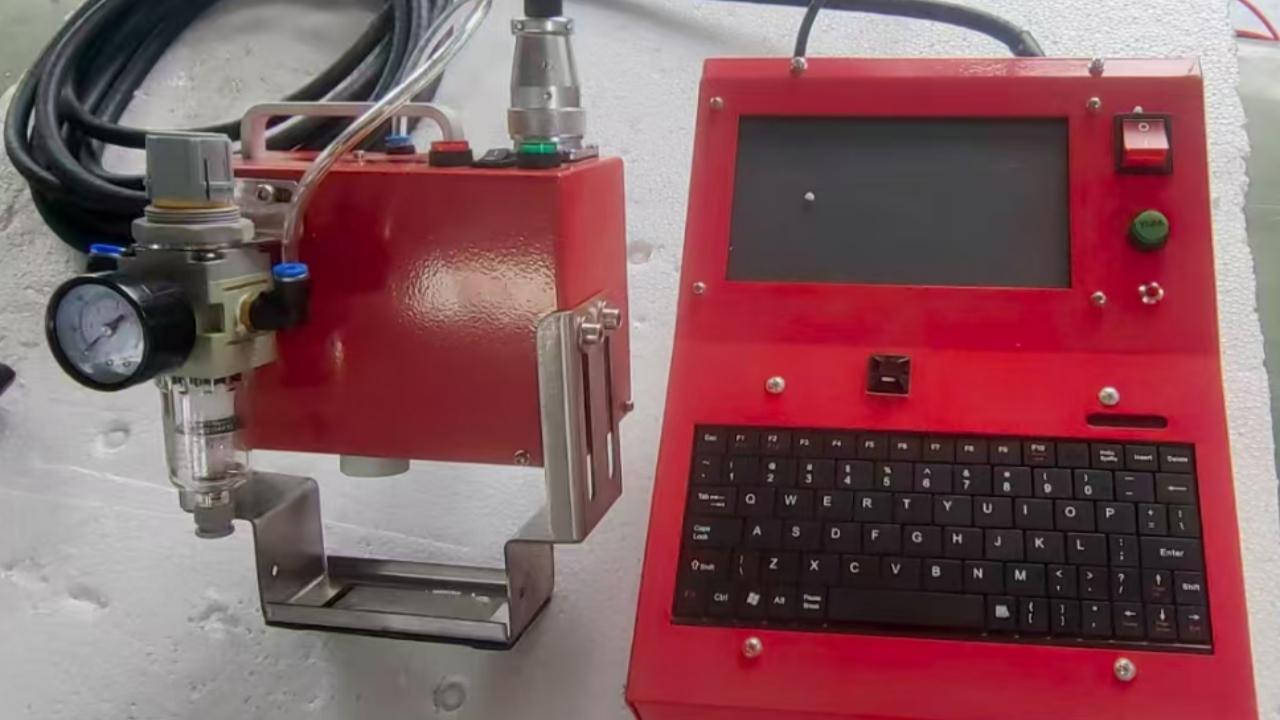

Portable Pneumatic Marking Machine

Description

Portable Pneumatic Marking Machine

**I. Main Technical Performance:**

1. Marking area: 80×30 mm, 120×30 mm (customizable)
2. Marking speed: (3 mm high) English, numbers about 1-3 characters/second
3. Marking depth: 0.1-1 mm, depending on the hardness and surface of the material
4. Repeatability precision: ≤0.04 mm
5. Marking position: Flat surface of the work piece; cylindrical surface
6. Marking content: English, numbers, punctuation, Chinese characters, graphics
7. Marking function: Can automatically print production serial numbers, production dates, etc.
8. Marking form: Dotted, linear
9. Material hardness requirement: HRC≤75

**II. Equipment Operating Conditions:**

1. Voltage: 220V±10％, 50HZ/60HZ
2. Air source: 0.1-0.7Mpa, dry and clean
3. Ambient temperature: -20～40℃
4. Total power: ≤350W

**III. Main Features:**

1. Printing content: Chinese and English characters, Arabic numerals, special characters, and graphics. It can automatically print serial numbers, VIN standard printing, time printing, date printing, barcode scanning printing, ticket printing, fixed characters, dot matrix printing, and QR code marking printing.
2. The printed content is automatically stored, can be queried and statistically analyzed, and will not be destroyed due to power outages or other unexpected situations.
3. It supports the WINDOWSXP operating system with a user-friendly interface.
4. It supports multiple font libraries: MG font library, SHX font library of AUTO CAD, CHR font library of BORLAND company, and TTF font library of WINDOWS.
5. It can directly read the PLT format graphics from vector drawing software such as CAD, CORELDRAW, and CAXA.

**IV. Application Scope:**

Marking on various metal components.
